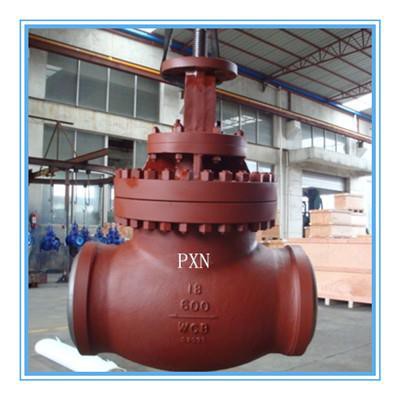

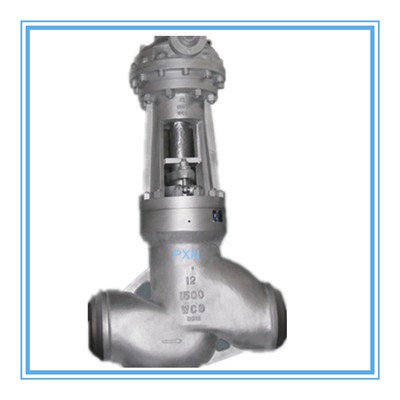

Straight Globe Valve with BW End
Pressure: 2500LB
Material: A105
Connection: BW End
Operation: Handwheel
BS1873 straight globe valve BW end, BW straight Pattern Globe Valve, API600 Butt Welded Globe Valve, Renewable seat Globe Valve is used for throttling and frequent operation. Globe valve's structure is simpler than gate valve's, and it is more convenient in manufacturing and maintenance. The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life. When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's
Features:

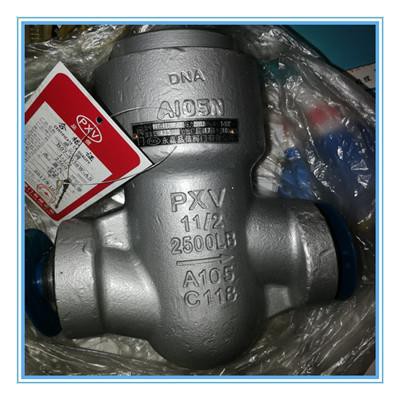

Size: 1-1/2 inch
Pressure: 2500LB
Material: A105
Connection: BW End
Operation: Handwheel
1. OS & Y, Rising stem
2. Bolted Bonnet with spiral-would gasket
3. Conic Disc
4. Backseat Weld-Deposited
5. Impact Hand wheel (On Request)
6. Extended Bonnet for Cryogenic condition
7. Flanged or butt welded ends.
8. By Pass on Request
9. Locking Device Optional
Technical
Product Name: | BS1873 stop valve |
Size: | 2inch to 24inch(DN50 to DN600) |
Pressure rating | 150LB to 1500LB (PN10 to PN160) |
Material: | A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15、 A351 CF8、CF8M、CF3、CF3M, etc |
End connection: | RF |
Operation type | Handwheel, Gear, Electrical actuactor, pneumatic actuactor |
Design Standards: | BS1873 |
Face to Face: | ASME B16.10 |
Test standard: | API598 |
