Globe Valve with Position Indication

Size: 3inch
Pressure: 300lb
Material: WCB
Connection: BW End
Operation: Handwheel with lock

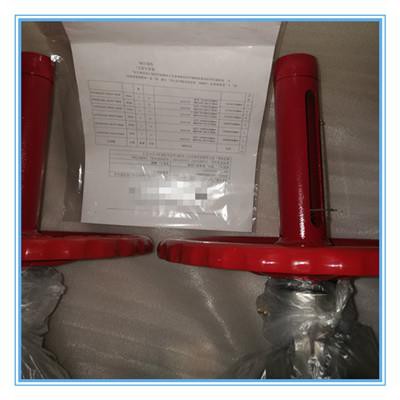

Stem with position indication.

Send InquiryChat Now

BS1873 straight stop valve with position indication, Motor drive straight Pattern Globe Valve, API600 Globe Valve with electrical actuator, Renewable seat Globe Valve is used for throttling and frequent operation. Globe valve's structure is simpler than gate valve's, and it is more convenient in manufacturing and maintenance. The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life. When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's


Specifications:

Size: 3inch

Pressure: 300lb

Material: WCB

Connection: BW End

Operation: Handwheel with lock

Stem with position indication.


Features:

1. The product has reasonable structure, reliable seal, double durable metal seal design to assure no leakage and safer factory facility.

2. The seal surface is buildup welding with Co hard alloy. It has characteristics of good abrasion resistance, good corrosion resistance, god anti-scuffing roperties and long life.

3. The stem has good abrasion resistance and good corrosion resistance. It is treated by heat and nitriding.

4. Stem shows the lifting position visually.

5. The part material, flange and butt weld and dimension may be selected according to current operating condition and users' requirement, so that meeting the requirements of various engineering.


Technical

Product Name:

BS1873 stop valve with position indication

Size:

2inch to 24inch(DN50 to DN600)

Pressure rating

150LB to 1500LB (PN10 to PN160)

Material:

A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15、 A351 CF8、CF8M、CF3、CF3M, etc

End connection:

RF

Operation type

Handwheel, Gear, Electrical actuactor, pneumatic actuactor

Design Standards:

BS1873

Face to Face:

ASME B16.10

Test standard:

API598
