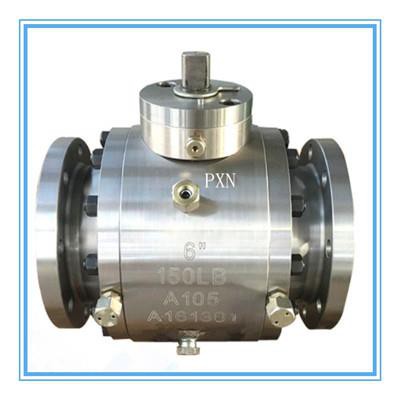

Metal Seat Forged Ball Valve
2. Carbon Steel / Stainless Steel
3. Solf / Metal Seated
4. Full Bore / Reduced Bore
5. SW / NPT / RF / RTJ / BW ends
Metal seat ball valve, flange forged ball valve, forged floating ball valve, 2piece forged ball valve, metal to metal seat ball valve.
Forged Floating Ball Valve can be used to handle a variety of liquids, suspended solids and gases in many types of industry. Ball valves are suited for fluid flow requiring assured performance, tight shutoff, constant torque and no maintenance.
Cast Floating Ball Valve offer quick, quarter-turn operation, visual indication of the valve position, straight uninterrupted flow, and compact size. The full bore design minimizes pressure drop across valve while maximizing flow capability and throughput economy for general line services.
Specifications:
1. 1/2inch-12inch, Two-Piece
2. Carbon Steel / Stainless Steel
3. Solf / Metal Seated
4. Full Bore / Reduced Bore
5. SW / NPT / RF / RTJ / BW ends
6. ISO Mounting Pad
7. Blowout-Proof Stem
8. Anti-Static Device
9. Locking Device
10. Operation: Gear, Handwheel, Lever Operated or Pneumatic Actuator
Technical Info.
Product Name: | forged steel 2 piece floating ball valve |
Size: | 1/2"inch to 8inch(DN15 to DN200) |
Pressure rating | 150LB to 1500LB (PN10 to PN160) |
Material: | Carbon steel |
End connection: | SW |
Operation type | Handwheel, BARE STEM, ISO MOUNTED FLANGE, Worm, pneumatic, electric actuators |
Design Standards: | API6D |
Face to Face: | ASME B16.10 |
Test standard: | API598 |
Fire safety: | API607 |
Hot Tags: metal seat forged ball valve, China, manufacturers, factory, buy, price, in stock, stainless steel ball valve, ball valve 150LB, manual operated ball valve, Top Entry Ball Valve, High performance metal seat ball valve, resilient seat ball valve
