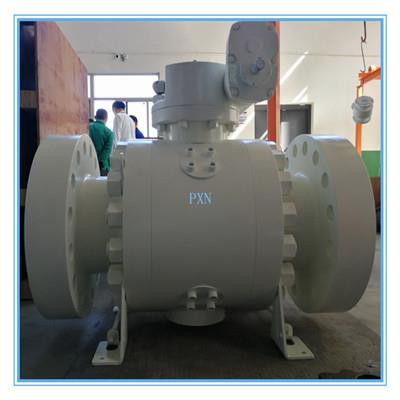

Trunnion Mounted Ball Valve

Size: 18inch
Class: 600LB
Material: WCB
Connection: RF Flange
Operation: worm operated

Send InquiryChat Now

Trunnion Mounted Ball Valve, Flanged trunnion mounted Ball Valve, Cast steel 3 piece fixed ball Valve, API trunnion mounted ball valve.


Side Entry Trunnion Mounted ball valve has 2 types: 2pcs side entry ball valve and 3pc side entry ball valve. These type valves are suitable to stand the harsh service conditions often present in industrial and petroleum industry. These valves are recommended for tight shut-off in high pressure and arduous fluid applications.


Specifications:

Size: 18inch

Class: 600LB

Material: WCB

Connection: RF Flange

Operation: worm operated


Feature:

Trunnion Mounted Ball Valve designed the Side-Entry. Trunnion-Mounted Ball Valves to assure bi-directional sealing of the valve with two independent floating seats. The design of these seats minimizes the torque required to operate the valve without losing the sealing power. This power is assured by zero differential pressure to the valve's maximum rated pressure. In addition, these repairable valves are manufactured to seal off both seats at the same time and to allow bleeding of the entrapped cavity pressure (DBB) with the ball in the closed position. The DBB feature allows for verifying that the seats are properly sealing.


Technical information:

Product Name:

reduced bore ball valve

Size:

8"inch to 20inch(DN200 to DN500)

Pressure rating

150LB to 1500LB (PN10 to PN160)

Material:

Carbon steel

End connection:

SW

Operation type

Handwheel, BARE STEM, ISO MOUNTED FLANGE, Worm, pneumatic, electric actuators

Design Standards:

API6D

Face to Face:

ASME B16.10

Test standard:

API598

Fire safety:

API607


Ball Valve Product range:

2 PC Side-entry Ball Valve


Size

2~24" (DN50~DN600)

Rating

150~1500LB (PN16~PN250)

Body Materials

Cast Carbon Steel, Stainless Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel

Operation

Electric, Pneumatic, Hydraulic Pneumatic & hydraulic double acting


3 PC Side-entry Ball Valve


Size

2~60" (DN50~DN1500)

Rating

150~2500LB (PN16~PN420)

Body Materials

Carbon Steel, Stainless Steel, Duplex Steel

Trim

Carbon Steel, Stainless Steel, Duplex Steel

Operation

Manual, Electric, Pneumatic, Hydraulic, Pneumatic & hydraulic double acting
