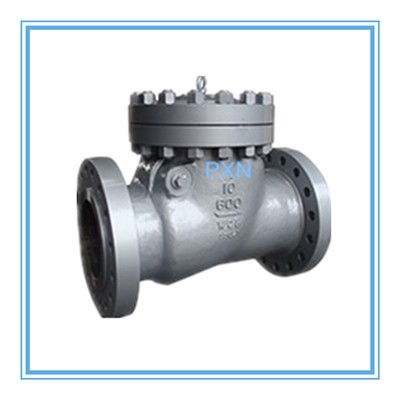

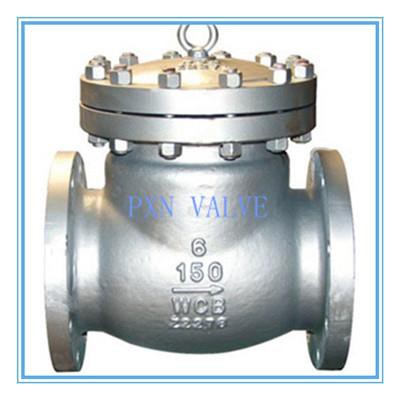

API 6D Swing Check Valve

1.Bolted Cover, Single Plates
2.Full Port
3.Automatically open or closed
4.Threaded or Welded Seat Ring
5.Back-seating, Renewable seat ring

Send InquiryChat Now


API6D Swing Check Valve, Full port swing check valve, swing type no-return valve, flanged swing check valve is opened or closed by the valve disc to rotate around the spindle outside the valve seat; and it is an automatic valve when it is automatically opened or closed by the force generated by the medium flowing within the pipeline. Its major function is to prevent the backflow of the medium in the pipeline, reverse rotation of the pump and its driving motor, and discharge of the medium in the container.


Feature:

1.Bolted Cover, Single Plates

2.Full Port

3.Automatically open or closed

4.Threaded or Welded Seat Ring

5.Back-seating, Renewable seat ring


Technical

Product Name:

API6D Swing Check Valve

Size:

2inch to 48inch(DN50 to DN1200)

Pressure rating

150LB to 1500LB (PN10 to PN160)

Material:

A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M,etc.

End connection:

RF

Operation type

None

Design Standards:

API6D

Face to Face:

ASME B16.10

Test standard:

API598



FAQ:

Q. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q. Can I have my own Logo on the product?

A: Yes, you can send us your drawing and we can make your logo, but you have to offer brand authorization.

Q. Can I request to change the form of packaging and transportation?

A: Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.

Q. How long is your delivery time?

A: Generally it is 15 days if the goods are in stock. Or it is 30--45 days if the goods are not in stock, it is according to your quantity.

Q Can I request to advance the shipment?

A: It should be depends on whether there is sufficient inventory in our warehouse.

Q. Can you produce the products according to my own drawings?

A: Yes, we can produce the products according to your drawings that will be most satisfying you.
