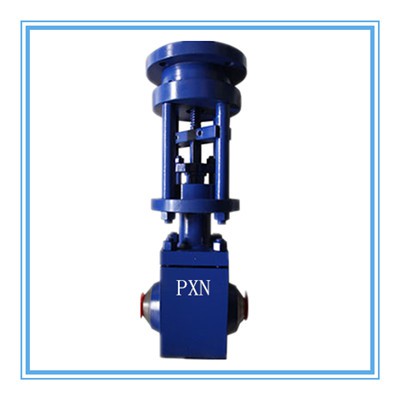

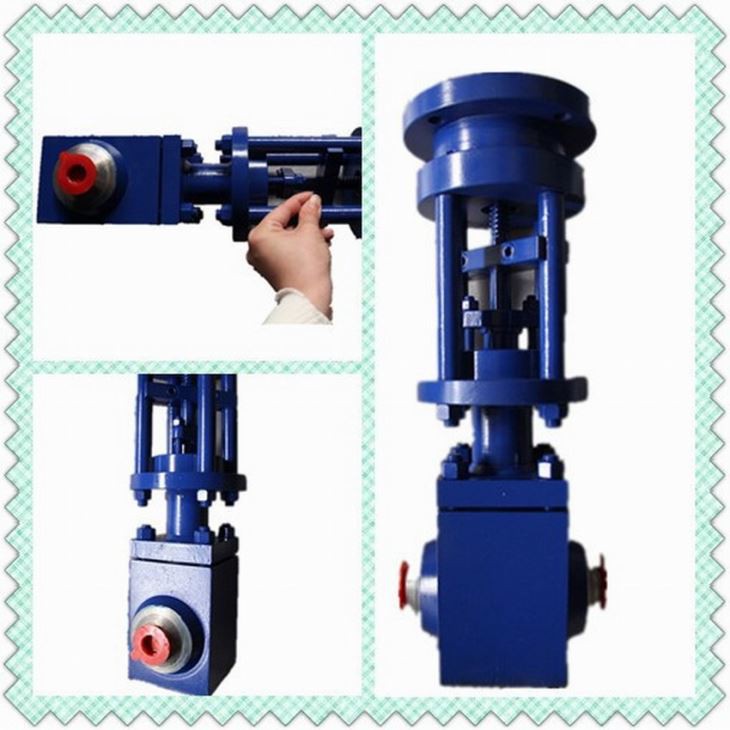

Steam Drain Globe Valve

Size: DN25
Pressure: PN100
Material: A105
Connection: BW end
Operation: ISO Mounted Flange, Electric actuator

Send InquiryChat Now

Special trap valve for power plant, drain type globe valve for power plant, drain steam globe valve, steam trap valve, forged high pressure high temperature, globe valve f, high temperature high pressure globe valve.


The middle part of pressure seal globe valve using forged body structure, make sure the valve has good sealing performance under high pressure and high temperature conditions. The sealing ring has two kinds of material, one is low carbon steel, and the other is flexible graphite + SS316.

The sealing surface is welding with hard alloy, after the welding is finished, the thickness of metal layer should be 3mm or more, therefore, it has advantages of wear-resistant, temperature-resistant and anti-corrosion, greatly prolong the service life. This type valve is widely used in power station.


Specifications:

Size: DN25

Pressure: PN100

Material: A105

Connection: BW end

Operation: ISO Mounted Flange, Electric actuator


Features:

1. forged body structure

2. welding end is used to connect the valve and pipelines

3. high temperature and high pressure resisting features

4. suitable for water, steam, oil goods in pipeline

5. has drain, isolate and exhaust functions


Technical parameters:

Product Name:forged globe valve for power station
Size:1/2inch to 4inch(DN15 to DN100)
Pressure rating900LB to 4500LB (PN100 to PN760)
Material:A105, F91, F51, F316, F60, F92 and so on
End connection:butt welding
Operation typeHandwheel, Gear, Electric actuactor, pneumatic actuactor
Design Standards:Japanese power electric station plant valve standard E101
Face to Face:Japanese power electric station plant valve standard E101
Weld end standardAMSE B16.25
