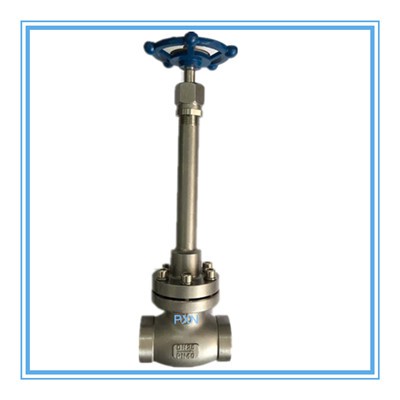

Cryogenic Globe Valve
Pressure: PN40
Material: CF3M
Connection: BW end
Operation: Handwheel or Manual
Steel Cryogenic Globe Valve, LNG Long stem globe Valve, LNG Vacuum Valve, LNG Pipeline Valve
This series valve is suitable for use on various kinds of pipeline from Class150 to Class900, PN16 To PN100 to cut off or connect the flowing of medium. By using different material, the valves could be suitable for medium such as water, steam, oil, nitric acid, acetic acid, oxidizing substance, carbamide and etc.
Specifications:
Size: DN25
Pressure: PN40
Material: CF3M
Connection: BW end
Operation: Handwheel or Manual
Feature:
1. Extended stem is suitable for low temperature medium and environment
2. Low temperature treated
3. The medium should not have any harmful influence on the operation and packing seal.
Product Name: | Cryogenic Globe Valve for LNG Usage |
Size: | 2inch to 30inch(DN50 to DN750) |
Pressure rating | 150LB to 1500LB (PN10 to PN160) |
Material: | A351 CF8、CF8M、CF3、CF3M;A352 LCB、LCC etc. |
End connection: | RF |
Operation type | handwheel, bevel gear, electrical, pneumatic |
Design Standards: | BS1783 |
Face to Face: | ASME B16.10 |
Test standard: | API598 |
