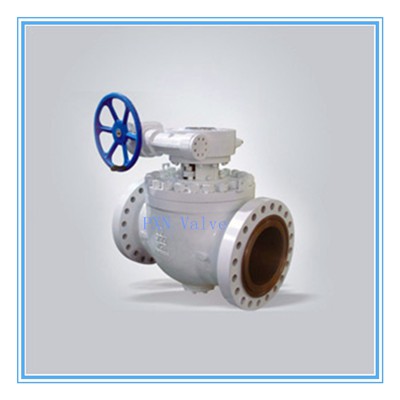

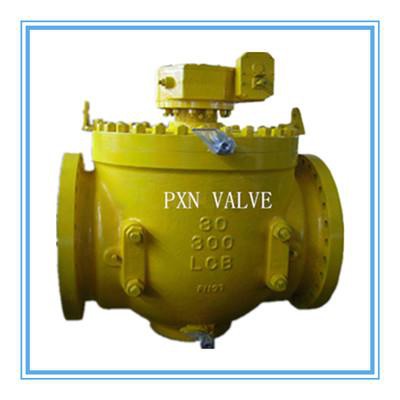

Top Entry Ball Valve
•Gas & oil terminals
•Chemical & Petrochemical
•Refining
•Fiscal Metering Skid Manufacturing
Top Entry Ball Valve requires two in-line isolation valves and a bleed valve, used to drain or vent trapped fluid between the two closure elements in order to safely isolate safely the downstream pipe. This feature can be achieved with one single valves c/w a bleed port between the obturator.
Main Application
•Offshore oil & gas production
•Gas & oil terminals
•Chemical & Petrochemical
•Refining
•Fiscal Metering Skid Manufacturing
•LNG gas carrier
•Process/ Power industr y contractors
Advantage
•Space and weight saving
•Cost saving (product & installation)
•Minimized leak paths
•Increased line structural integrity
•ESDV+MOV or ESDV+XV configurations
•Increasesd reliability of the system
Features:
•Anti blow out/low emission stems
•Fire safe & anti-static design
•Independent ball and stem
•Self aligning trims
•Self relieving/ Double piston effect
floating seats
•Soft or metal seated
Technical Info.
Product Name: | Top entry ball valve |
Size: | 8"inch to 48inch(DN200 to DN1200) |
Pressure rating | 150LB to 1500LB (PN10 to PN160) |
Material: | Carbon steel |
End connection: | RF |
Operation type | Handwheel, BARE STEM, ISO MOUNTED PAD, Worm, pneumatic, electric actuators |
Design Standards: | API6D |
Face to Face: | ASME B16.10 |
Test standard: | API598 |
Fire safety: | API607 |
