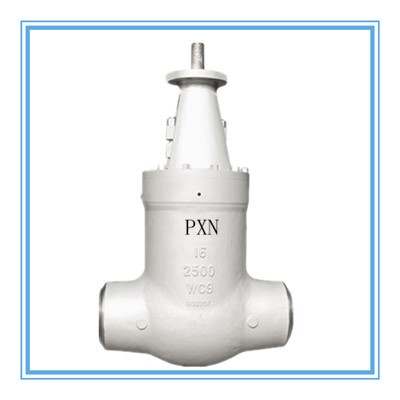

Critical Gate Valve for Power Plant
Pressure: 2500LB(PN250)
Material: WC9
Connection: BW end
Operation: Bare shaft
Critical gate valve, high temperature high pressure gate valve, gate valve for power plant:
Applicable to power plants, petrochemical, metallurgy and so on high temperature and high pressure water, steam, oil, superheated steam of the medium inside the pipeline operator.
Specifications:
Size: 16inch(DN400)
Pressure: 2500LB(PN250)
Material: WC9
Connection: BW end
Operation: Bare shaft
Features:
1. Pressure since the sealing structure, sealed performance is good
2. Opening and closing more optional structure: elastic wedge plate, rigid wedge type single ram, rigid wedge type double ram
3. Sealing surface using vertical alloys, it is wear-resistant, high temperature resistant, corrosion resistant.
4. High temperature creep resistant design
Technical parameters:
| Product Name: | high temperature high pressure gate valve for power station |
| Size: | 2inch to 24inch(DN50 to DN600) |
| Pressure rating | 900LB to 4500LB (PN100 to PN760) |
| Material: | A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15、 A351 CF8、CF8M、CF3、CF3M, etc |
| End connection: | butt welding |

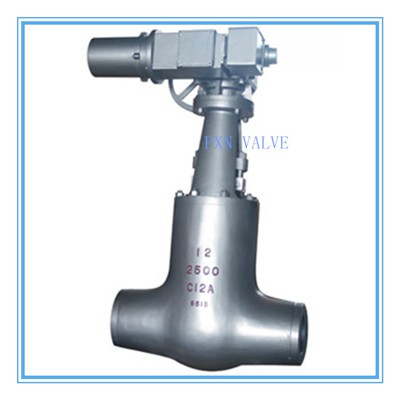

| Operation type | Handwheel, Gear, Electric actuactor, pneumatic actuactor |
| Design Standards: | JB/T3595, |
| Face to Face: | ASME B16.10 |
| Test standard: | MSS SP-61, API598 |
Nom | in | 8 |
mm | 200 | |
A | in | 28 |
mm | 711 | |
B | in | 6-1/5 |
mm | 158 | |
H Open | in | 45-1/5 |
mm | 1148 | |
W | in | 23-3/5 |
mm | 600 | |
Weight | Lb | 1102 |
Kg | 500 |
