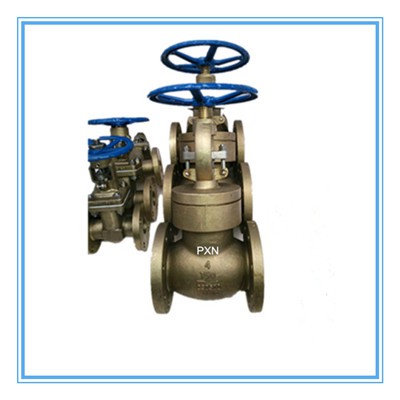

Bronze Globe Valve with Flange
Pressure: 150LB-1500LB
Material: Copper, Bronze, C958000, B62.
Bronze Globe Valve with flange, Bronze flanged globe valve, copper globe valve.
Bronze globe valve is suitable for the pipe system with the medium fresh water, air other gas, oil and steam with the temperature not over 120 centigrade degree.
B62 C95800 COPPER BRONZE GLOBE VALVE WITH FLANGE ENDS 150LBS-600LBS
Specifications:
Size: 1/2"-12"
Pressure: 150LB-1500LB
Material: Copper, Bronze, C958000, B62.
Feature:
1.OS&Y, Bolted Bonnet
2.Simple structure, manufacture and maintenance more convenient
3.Straight through design, opening and closing time is short.
4.Good sealing, Sealing surface friction between the small, long service life
Technical parameters:
Product Name: | Bronze Globe Valve with flange end |
Size: | 2inch to 18inch(DN50 to DN450) |
Pressure rating | 150LB to 1500LB (PN10 to PN160) |
Material: | Bronze C95800,B62 copper alloy; A217 WC6、WC9、C5、C12、C12A、CA15、 A351 CF8、CF8M、CF3、CF3M, etc |
End connection: | RF |
Operation type | Handwheel, Gear, Electric actuactor, pneumatic actuactor |
Design Standards: | BS1873 |
Face to Face: | ASME B16.10 |
Test standard: | API598 |
Hot Tags: bronze globe valve with flange, China, manufacturers, factory, buy, price, in stock, Stainless Steel Globe Valve, butt weld globe valve, stop valve, Straight through globe valve, Globe Valve With ISO Top Flange, DIN Stainless Steel Globe Valve
