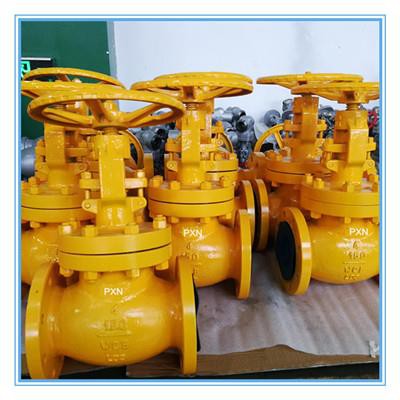

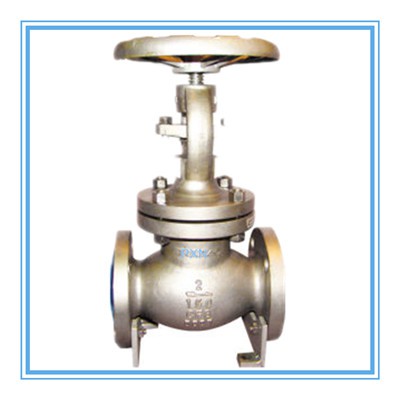

Straight Globe Valve with Flange End
2.Available with optional plug disc(globe)
3.Available with optional full jacket or semi-jacket design
4.Available with optional stem extension
Cast steel Globe valve, straight through globe valve, Straight through stop valve, flanged globe valve, API600 globe valve.
This type globe valve is used for throttling flow control. Shut off is accomplished by moving the disc against the flow stream rather than across it as in the case with a gate valve. The flow pattern through a globe valve involves changes in direction, resulting in greater resistance to flow, causing high pressure drop. Cast steel globe valve is an excellent valve to use for on-off service, also is suitable for frequent cycling and control of fluids anywhere in amount or volume between the open and closed positions.
Feature:
1.Available with optional threaded or welded seat
2.Available with optional plug disc(globe)
3.Available with optional full jacket or semi-jacket design
4.Available with optional stem extension
Technical parameters:
Product Name: | cast steel stop valve |
Size: | 2inch to 24inch(DN50 to DN600) |
Pressure rating | 150LB to 1500LB (PN10 to PN160) |
Material: | A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15、 A351 CF8、CF8M、CF3、CF3M, etc |
End connection: | RF |
Operation type | Handwheel, Gear, Electrical actuactor, pneumatic actuactor |
Design Standards: | BS1873 |
Face to Face: | ASME B16.10 |
Test standard: | API598 |
