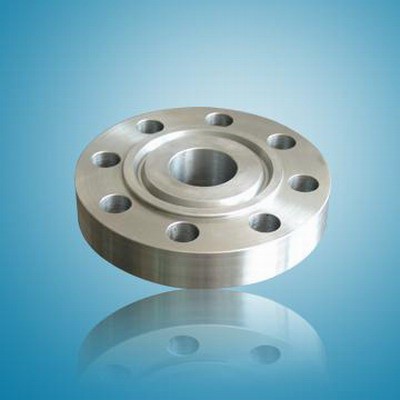

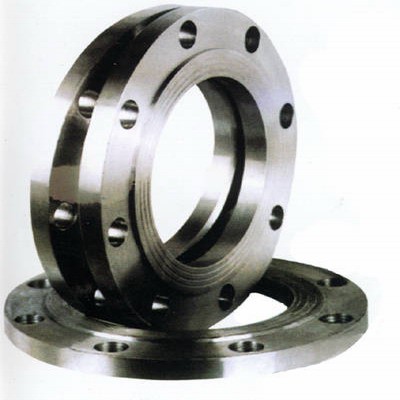

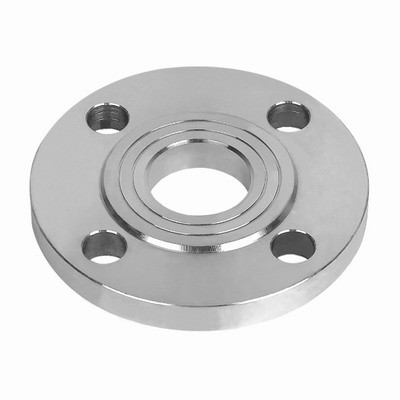

Slip-On flange has a hole with matching outside diameter of pipe from which pipe can pass. The flange is placed on pipe and fillet welded from both inside and outside. Slip-On Flange is suitable for low pressure and temperature application. This type of flange is available in large size also to connect big bore piping with storage tank nozzles. Normally, these flanges are of forged construction and are provided with the hub. Sometimes, these flanges are fabricated from plates and are not provided with the hub.
Type: Welding neck (WN), Slip-on (SO), Socket welding (SW), Lap-joint (LJ), Blind (BL), Thread (TH). Plate (PL)
Pressure Ratings: class 150 300 400 600 900 1500 and 2500
Pressure Ratings:PN6 PN10 PN16 PN25 PN40 and PN64...
Materials: Carbon steel (A105 C22.8 ST37.2 A694 F42-F70...), Stainless steel (A182 304 , 321, 316 , 316Ti..) and Alloy steel etc.
Standards: ANSI B16.5, B16.47 A or B, API, BS, DIN, UNI, JIS, AS and Mss SP etc.
