Home » Product > Gate Valve
Product Categories

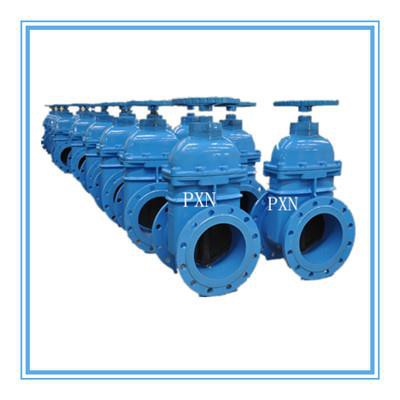

Non-rising Stem Gate Valve

Non-rising Stem Gate Valve

Size: DN100
Pressure: PN16
Material: GGG50
Connection: RF
Operation: Handwheel

Send InquiryChat Now

DIN F4 resilient gate valve, non rising stem gate valve, BS5153 flange gate valve, non rising stem resilient seated gate valve is widely used in water supply, sewage disposal, electric power, chemical, shipping, construction etc


Specifications:

Size: DN100

Pressure: PN16

Material: GGG50

Connection: RF

Operation: Handwheel


Features:

1.Light Weight

2.No-grooved body cavity

3.Wedged rubber-packed wholly close tolerance cast valve body

4.Three O-ring

5.Beneficial to drinking




Size / Rating

Operator

Material of Main Parts

DN40-DN300: PN10-16-25.
DN350-1200: PN10-16.

DN40-DN600: Wheel, Cap, Top flange free shaft, Gear box;
DN700-DN1200:  Top flange free shaft, Gear box

Body: Ductile Iron EN- GJS- 500- 7;
Bonnet: Ductile Iron EN- GJS- 500- 7;
Wedge: Ductile Iron EN- GJS- 500- 7 Coated NBR /EPDM EN 681-1;
Wedge Nut: Copper Alloy;
Stem: Stainless Steel X20 Cr13, AISI304/316/431;
Bonnet Gasket: NBR /EPDM EN 681-1;
O-Ring: EPDM/NBR;
HandWheel: Ductile Iron EN- GJS- 500- 7;
Coating: FEB powder epoxy



Hot Tags: non-rising stem gate valve, China, manufacturers, factory, buy, price, in stock
