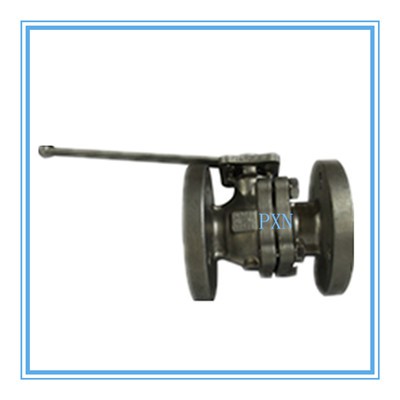

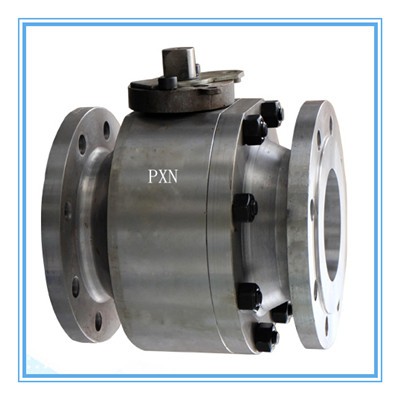

Duplex Stainless Ball Valve
Duplex Stainless Ball Valve
Duplex Stainless Ball Valve

Duplex Stainless Ball Valve

Size: 1/2''-8''
Pressure Rating: PN16~PN40
Material: GS-C25N 1.0619, 1.4308.1.4408 etc.
Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).
Suitable Medium: Water, Steam, Oil and natural gas etc.

Send Inquiry

Product Introduction

DIN 2PCS Flanged floating ball valve, DIN stainless steel floating ball valve, Duplex stainless steel floating ball valve, ball valve with level.

Product Specification:

Size: 1/2''-8''

Pressure Rating: PN16~PN40

Material: GS-C25N 1.0619, 1.4308.1.4408 etc.

Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).

Suitable Medium: Water, Steam, Oil and natural gas etc.

Features:

Cast Stainless Steel material

Solid Stainless Steel Ball

Blow-out Proof Stainless Steel Stem

Reinforced PTFE Seats

Full Opening for Unrestricted Flow

Lockable in Full Open or Closed Positions

API 607 Fire Safe Design available

Mounting Pad for Easy Actuation

Adjustable Length/Removable Handles to fit into areas of limited space

Handle with locking device is option

optional to meet the requirements of different markets.

Product Name:	DIN 2 piece ball valve
Size:	1/2"inch to 8inch(DN15 to DN200)
Pressure rating	150LB to 600LB (PN10 to PN40)
Material:	Carbon steel
Port:	Full Port
End connection:	RF
Operation type	Handwheel, BARE STEM, ISO MOUNTED PAD, Worm, pneumatic, electric actuators
Design Standards:	EN1983
Face to Face:	EN558
Test standard:	DIN2401
Flange standard:	EN1092-1
