Sleeve Type Plug Valve

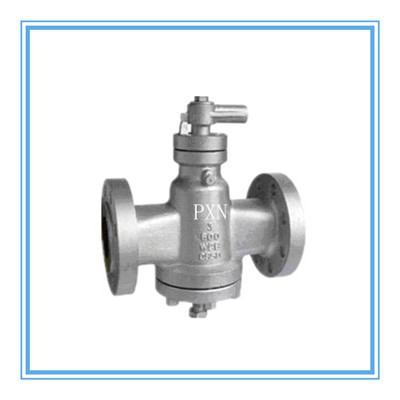

Sleeve Type Plug Valve

Size: 3inch
Pressure: 600LB
Material: WCB
Connection: RF Flange
Operation: Lever

Send InquiryChat Now



API Sleeve flanged plug valve, flange sleeve plug Valve, API stainless steel plug Valve.


A PTFE sleeve is fitted into the valve body and accepts the metal plug which rotates against the PTFE with a minimum of required torque. PTFE, being highly inert and having a very low coefficient of friction, completely surrounded to plug, is ideal for this service. The sleeve provides a large, circumferential sealing surface from port to port.


Specifications:

Size: 3inch

Pressure: 600LB

Material: WCB

Connection: RF Flange

Operation: Lever


Features:

1. bi-directional flow

2. Simple actuation, light weight, compact design

3. Long-term, trouble-free service in a wide variety of application

4. No seizing, no sticking.

5. As the plug rotates, the 360° port lips provides a self-cleaning action to remove scaling and adhering media


Product Name:

sleeve plug valve

Size:

1/2"inch to 24inch(DN15 to DN600)

Pressure rating

150LB to 1500LB (PN10 to PN40)

Material:

WCB, WC9, C5,CF8, CF8M, CF3, CF3M

Port:

Full Port

End connection:

RF

Operation type

Handwheel, worm, wrench

Design Standards:

API6D

Face to Face:

ASME B16.10

Test standard:

API6D

Flange standard:

ASME B16.5
