Lift Type Plug Valve

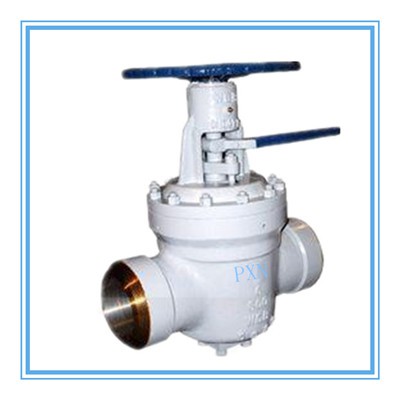

Lift Type Plug Valve

Size: 4inch
Class: 600LB
Material: WC6
Connection: BW End
Operation: Wrench

Send InquiryChat Now



Lift Plug Valve, BW END Lift plug Valve, API lift plug Valve.

When opening the valve, first of all, turn the hand wheel to make the plug lifted and separated with the sealed surface, the turn the handle by 90 degree to connect the channel of plug the channel of valve body. When closing the valve, turn the handle by 90degree to mark the channel of plug vertical to the channel of valve body, and then the hand wheel to descend the plug, so that the valve is closed.


Specifications:

Size: 4inch

Class: 600LB

Material: WC6

Connection: BW End

Operation: Wrench


Features:

.Designed and Manufactured to API 6D, API599

.Face to Face Dimension: ANSI B16.10, DIN 3202, GB

.Flanged Dimension: ANSI / ASME B16.5, EN 1092

.Inspect and Test: API 598

.Size Ranges: NPS 1/2"~42"

.Pressure Rating: PN10/16, ANSI125/150/300/600/900/1500


Product Name:

lift plug valve

Size:

1/2"inch to 24inch(DN15 to DN600)

Pressure rating

150LB to 1500LB (PN10 to PN40)

Material:

WCB, WC9, C5,CF8, CF8M, CF3, CF3M

Port:

Full Port

End connection:

RF

Operation type

Handwheel, worm, level

Design Standards:

API6D

Face to Face:

ASME B16.10

Test standard:

API6D

Flange standard:

ASME B16.5


FAQ

1.Q: What is your main market?

A: Our main market is North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe.

2. Q: Are there products standard?

A: Our model is standard; if you have specific demand, please inform us.

3. Q: Do you have interest to do our own design items?

A: Absolutely! It's our pleasure.


Shipment Terms:

1) Terms of payment: T/T, L/C, Western union.

2) Shipment: average 20-25days after receiving deposit.

3) Delivery: Shanghai/Ningbo, by sea or air.

4) Guarantee: One year since delivery.

5) Inspection: 100% testing for all the valves.

6) All kinds of CERTIFICATE OF ORIGIN.
