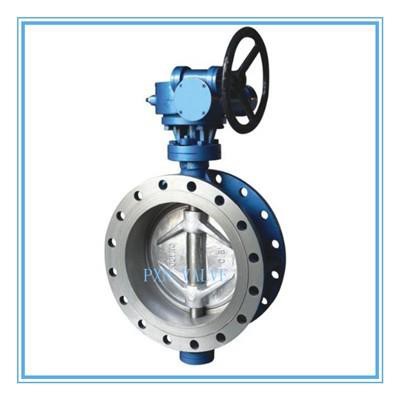

Soft Seal Butterfly Valve Stainless Steel Body

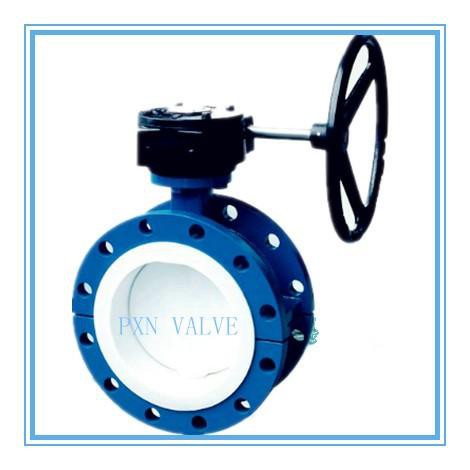

flange soft seat butterfly valve
wafer type
Body: Stainless steel
Disc: Ductile Iron/Stainless steel/bronze/Hastelloy Alloy
Seat: PTFE
Stem: Carbon Steel
Send Inquiry
Product Introduction
18 "BUTTERFLY VALVE WAFER LUG TYPE 150lb
BODY IN STAINLESS STEEL ASTM A351 GR. CF8M
DISC Dutile Iron ASTM A536+NBR(PTFE)/Stainless Steel/Bronze/Hastelloy Alloy
SEAT:PTFE
Structure: Short Type
ACCORDING TO MSS-SP67 STANDARD
GEAR OPERATOR
| Size | D | D1 | d | b | f | H | L | W | |
| 100 | 220 | 180 | 158 | 24 | 3 | 446 | - | - | |
| 150 | 285 | 240 | 212 | 26 | 3 | 521.6 | - | - | |
| 200 | 340 | 298 | 268 | 28 | 3 | 690 | 89 | 53 | |
| 250 | 390 | 350 | 320 | 28 | 4 | 800 | 114 | 81 | |
| 300 | 450 | 400 | 370 | 28 | 4 | 959 | 114 | 128 | |
| 350 | 505 | 460 | 430 | 30 | 4 | 1048 | 127 | 156 | |
| 400 | 555 | 515 | 482 | 30 | 4 | 1120 | 140 | 205 | |
| 450 | 615 | 555 | 532 | 34 | 4 | 1190 | 152 | 228 |
