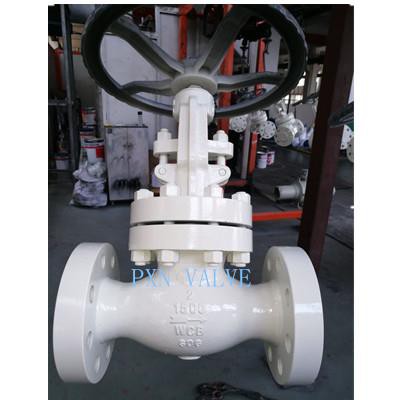

Bolted Bonnet Globe Valve Flange End

Bolted bonnet globe valve

Cast steel globe valve

Flange globe valve

1500LB Globe valve

2 inch Globe valve

Plug type Globe Valve

Through way globe valve

WCB Globe Valve

Normal Size: 2 inch to 8 inch

Normal Pressure: 900LB, 1500LB

Medium: Water/Oil/Gas/Steam

End: BW End, RF End

Material: Cast steel, Stainless steel, Duplex stainless steel

Operation: Handwheel, pneumatic actuator

Standard according to DIN, GB, ANSI, JIS

Design and Manufacture: BS1873, ASME B16.34

Marked as MSS SP-25

Painting: Epoxy resin coating

Packing: Plywooden case

Part Names Part Materials

Body         WCB       LCB    WC6 CF8 CF8M CF3 CF3M         C83600/C95800

Bonnet   WCB       LCB       WC6 CF8 CF8M CF3     CF3M         C83600/C95800

Disc/Ball/Wedge WCB       LCB WC6 CF8 CF8M CF3 CF3M         C83600/C95800

Stem         F6a       F304 F6a F304 F316 F304L F316L C83600/C95800

Seat/Seat Ring 13%Cr         SS304 13%Cr SS304 SS316 SS304L SS316L C83600/C95800

Packing: Graphite/PTFE

Gasket SS304+Graphite/SS304+Graphite

Bolts/Nuts B7/2H     L7/4 B16/4 B8/8 B8M/8M B8/8 B8M/8M B8M/8M

Suitable Medium W.O.G etc. HNO3, CH3OOH etc. Sea Water etc.

Suitable Temperature -29~425 °C -46~340 °C -46~340 °C -196~427 °C -196~427 °C -196~427 °C -196~427 °C -29~220 °C

Logo: PXN or OEM

Delivery Time: 10-30days for common size, for required material and structure, it takes about 30-50days

Payment Term: 30% T/T after signed sales contract, 70% before shipment or 100% L/C at sight

Addtional service: We offer technical information and drawing for your required needs
