DIN Globe Valve Flange End
1.Full Bore
2.Cast Body, Bolted Bonnet
3.Out-blowing safe stem and straight pattern
4.Different Type of Plug
5.Manufactured according to DIN Standard
Send Inquiry
Product Introduction

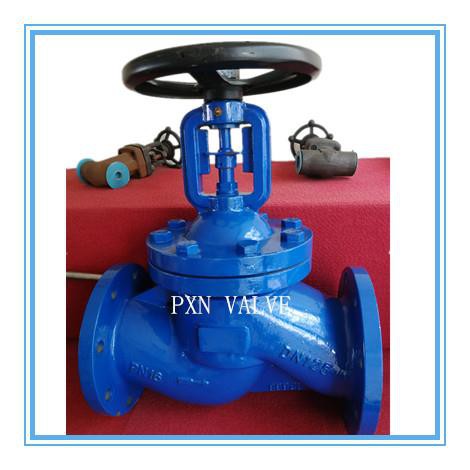

DIN Globe Valve Flange End
This DIN Globe Valve RF is suitable for many media including water, oil&gas, steam, petrol products, nitric acid and so on.
Spcification:
Size: DN50--DN1200
Pressure: PN6, PN10, PN16, PN25,PN40, PN100, PN250,PN420
Material:
1) Carbon Steel:1.0619, 1.0460
2) Stainless Steel: 1.4404, 1.4408
Design: DIN3356, EN13709
Face to Face: DIN 2543-2545, EN558-1
Flange:DIN 2543-2545, EN1092-1
CE Mark according to PED 93/23
Work temperature: Carbon steel: -29 degree to 425 degree
Stainless Steel: -46 degree to 190 degree
