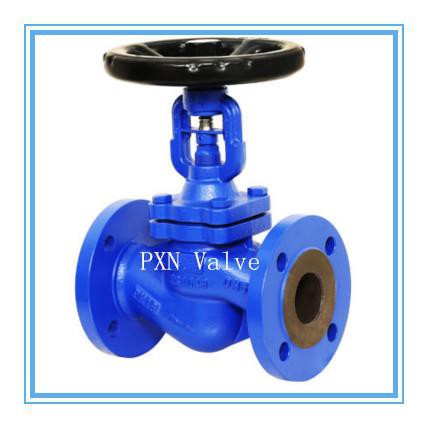

DIN Standard Carbon Steel Globe Valve PN16

DIN Standard RF Carbon Steel Globe Valve PN16

Usage:

DIN Standard Globe Valve are widely used for Petroleum, chemical industry, pharmacy, fertilizer, power industry in European markets, Africa Martket and Russia market.

Size: DN50 to DN1000

PN: PN6, PN10, PN16, PN25, PN40,PN64, PN100, PN400

Main Material:

Body: GS-C25, 1.4301, 1.4401

Cover: GS-C25, 1.4301, 1.4401

Seat: 1.4301 STL

Disc: 1.4021, 1.4301+STL

End: Flange

Design standard: DIN 3356

Face to face dimension: DIN 3202

Flange ends: DIN 2543-2545

Test & inspection: DIN 3230

Our castings:

Our test:

DN Main connection size (PN16)

        L D       D1  D2 b  f       H       n-Φd

50 230 165 125 102 20 3 225 4-Φ18

65 290 185 145 122 20 3 260 4-Φ18

80 310 200 160 138 20 3 275 8-Φ18

100 350 220 180 158 20 3 335 8-Φ18

125 400 250 210 188 22 3 390 8-Φ18

150 480 285 240 212 22 3 405 8-Φ22

200 600 340 295 268 24 3 520 12-Φ22

250 730 405 355 320 26 3 610 12-Φ26

300 850 460 410 378 28 4 660 12-Φ26

350 980 520 470 438 30 4 970 16-Φ26

400 1100 580 525 490 32 4 1055 16-Φ30

                              (PN25)

50 230 165 125 102 20 3 225 4-Φ18

65 290 185 145 122 22 3 260 8-Φ18

80 310 200 160 138 24 3 275 8-Φ18

100 350 235 190 162 24 3 335 8-Φ22

125 400 270 220 188 26 3 390 8-Φ26

150 480 300 250 218 28 3 405 8-Φ26

200 600 360 310 278 30 3 520 12-Φ26

250 730 425 370 335 32 3 610 12-Φ30

300 850 485 430 395 34 4 660 16-Φ30

350 980 555 490 450 38 4 970 16-Φ33

400 1100 620 550 505 40 4 1055 16-Φ36
