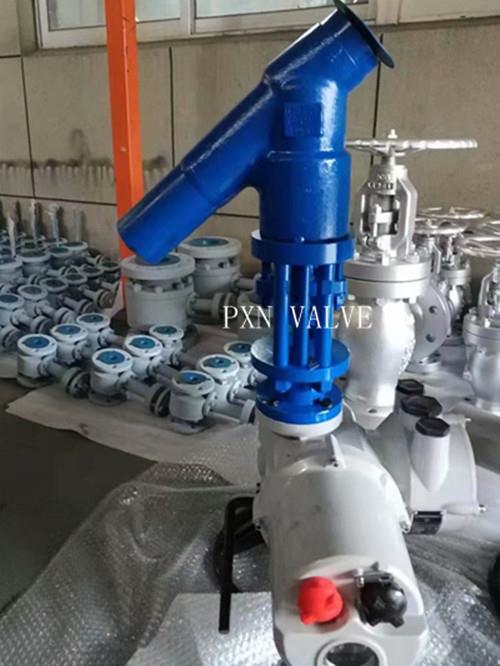

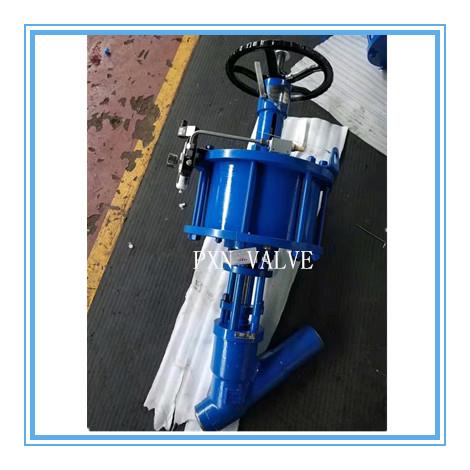

Y Type Globe Valve F91 For Power Plant Or Station
Y type globe valve for power plant, control globe valve, drain globe valve, BW globe valve
Specifications:
Body: F91
Trim: Stellite
Size: DN50-DN200
Pressure: PN160, PN250, PN320
Connection: Butt Weld with pipe P91
Operation: pneumatic actuator, electric actuator
This type globe valve are used in high pressure high temperature condition, especially in power plant, power station and boiler.
Forged valve bodies help minimize material defects and provide better quality and longer life valves, especially at elevated temperatures with thermal cycling conditions.
ASME 2500 FORGING STEEL GLOBE VALVE
ASME 4500 FORGING STEEL GLOBE VALVE
control globe valve, drain globe valve, BW globe valve
Material of Main Parts:
| Parts | Material | |||
| Electric Actuator | As required | |||
| Body | A105 | A182 F11 | A182 F22 | A182 F91 |
| Disc | A105 overlaid STL | F11 overlaid STL | F22 overlaid STL | F91 overlaid STL |
| Bonnet | A105 | A182 F11 | A182 F22 | A182 F91 |
| Stem | A276 431 | Cr.Mo.V Steel | Cr.Mo.V Steel | Inconel 718 |
| Gland | A182 F6A | A182 F304 | ||
| Gasket | Pure Iron | A182 F304 | ||
| Clamp Bolt | A193 B7 | A193 B7 | A193 B7 | A193 B16 |
| Nut | A194 2H | A194 4 | A194 4 | A194 4 |
