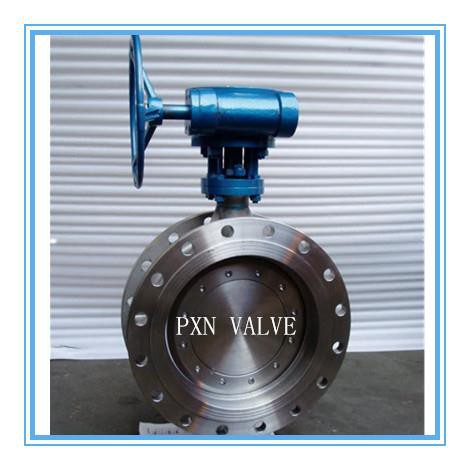

API609 Double Flange Butterfly Valve
API609 Butterfly Valve, Flange Butterfly Valve, Stainless Steel flange butterfly valve, Double Flange butterfly valve
Specifications:
Size: 2" to 40"
Class: 150LB--900LB
Material: Stainless Steel, Cast Steel, Alloy Steel
End: RF, FF, BW, Wafer
Features:
1. Small size, light weight, easy installation and maintenance.
2. Simple construction, 90 degree quickly on-off operation.
3. Minimized operating torque can save energy.
4. Flow curve to straight line, excellent regulation performance.
5. The test of tens thousands opening/closing operations.
6. Wide selection of materials, applicable to various medium.
| Normal Size | 2" to 40" | 2"-40" | 2"-24" |
| Normal Pressure | 150LB | 300LB | 600LB |
| Test Pressure(Shell) | 3.0Mpa | 7.5Mpa | 15Mpa |
| Test Pressure(Seal) | 2.2Mpa | 5.5Mpa | 11Mpa |
| Suitable Medium: | Fresh Water | Sea Water | WOG |
| Operation | LEVEL, WORM OPERATED, | Electric Actuator | Pneumatic Actuator |
| Face to Face | API609 | ISO5752 |
