API6D Flange Slab Gate Valve

API6D Flange Slab Gate Valve

API6D Flanged slab gate valve design minimizes and eases the maintenance allowing for the service operations without the removed of the valve from the line.

Send InquiryChat Now

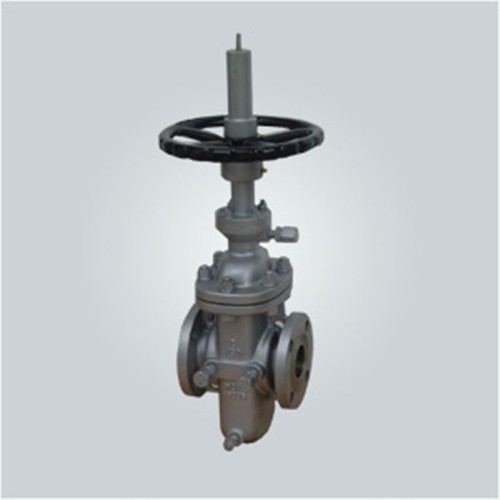

API6D Flange slab gate valve

API6D Flanged slab gate valve design minimizes and eases the maintenance allowing for the service operations without the removed of the valve from the line. Flanged Slab gate valve is popularly used in pipeline of natural gas, oil, chemical industry, environment, urban pipeline

Specification:

Size: 2inch~36inch

Class: 150LB~1500LB

Material: Cast steel and Stainless Steel



Design and manufacture standards: API 6D, ASME B16.34, API600

Face to face standards: ASME B16.10, API 6D

End connections standards: ASME B16.5, ASME B16.25, ASME B16.47

Test standards: AP16D, BS 6755, ISO 5208


IMG_20180522_143546

Features:

1. Outside screw and yoke and Bolted Bonnet
2. Available with optional for Single disc & Double disc

3. Common trims are available

4.
 Available with optional for manual and motor actuator

Suitable   Medium

Water,   Sewage, Oil, Gas etc.

Main   material

WCB, LCB, LCC, WC6, WC9,   CF8, CF8M, CF3, CF3M, 4A, 5A.

Suitable   Temperature

-29~   121ºC

Nominal   Pressure

PN1.0~16.0MPa

Nominal   Diameter

DN40-DN1000

Butt   Weld End

ASME   B16.25, GB/T12224

Face   to Face Length

API   6D, ASME B16.34, JB/T5298
