Pneumatic Actuator Diaphragm Type Control Globe Valve
Control Valve for Power Systems is one of our lead products. Pneumatic actuated diaphragm type single- seated and double action pneumatic actuated control valve are offered as request.
Send Inquiry
Product Introduction

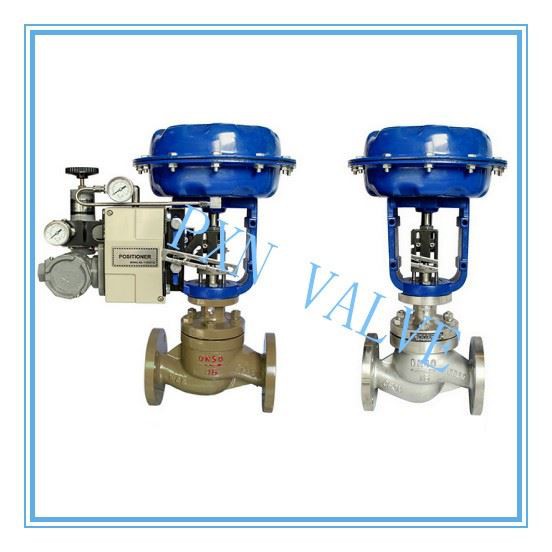

Pneumatic Actuated Diaphragm Type Single- Seated Control Valve
| Specifications | |
| Norminal size: 2"-12" | 2"-12" |
| Norminal pressure | 1.6-6.4Mpa, ANSI 150-600LB |
| Connection | Flanged FF, RF, BW |
| Flange connection standard | ANSI B16.5 |
| Body material | WCB, CF8, CF3, CF8M, CF3M |
| Trim material | 304+STL, 316+STL |
| Leakage standard | Conform to ANSI B16.104-1976 VI |
Control Globe Valve are designed according to Cv, Flow and work condition.
Valve:
Globe Type
Body and Bonnet: WCB
ANSI Class: 150LB
BW or Flange end

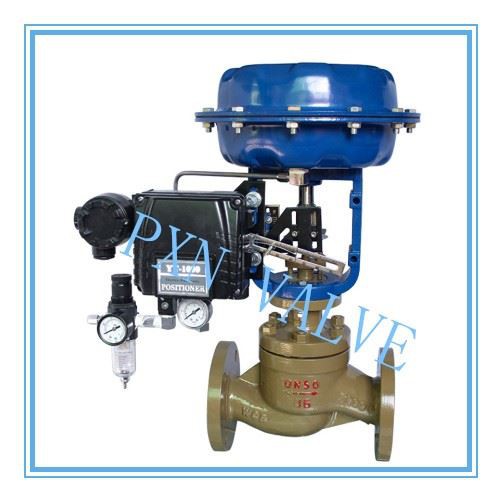

Actuator with Positioner:
Diaphragm
Spring Closing
Top mounted handwheel
