High Pressure Swing Check Valve 1500LB For Power Plant

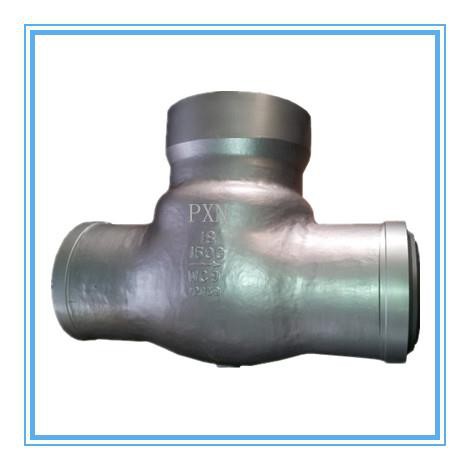

High Pressure Swing Check Valve For Power Plant

PXN Pressure seal check valve are designed for high pressure high temperature application. In the touch of world of high pressure, high temperature valve applicatio, Pressure seal check valve are provide excellent performance as a safe, zero leak, pressure containing boundary.

Speicifications:

Design and Mnaufacture standard: ASME B16.34 or API6D

End to End dimensions standard:ASME B 16.10

Pressure and Temperature Chart: ASME B 16.34

Butt Welded end standard: ASME B 16.25

Inspection and test standard: MSS SP-61 or API598

Size range: 2 inch to 24 inch

Pressure range: 600LB, 900LB, 1500LB, 2500LB, 3000LB

Material: WCB / LCB / LCC / CF8M / CF8 /CF3M / Bronze/4A / 6A / Inconel

Ends: RTJ or BW end

Features:

Cast body precisely machined with integral flanges

Structures in Bolted or Pressure Seal Union Cover

Hinge is pivoted to the hinge pin inside the body

Nace service MR-01-75 are optional
