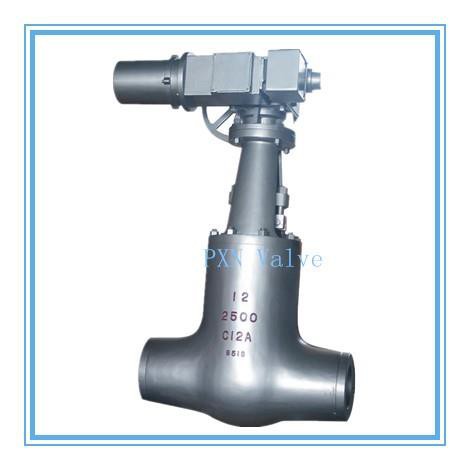

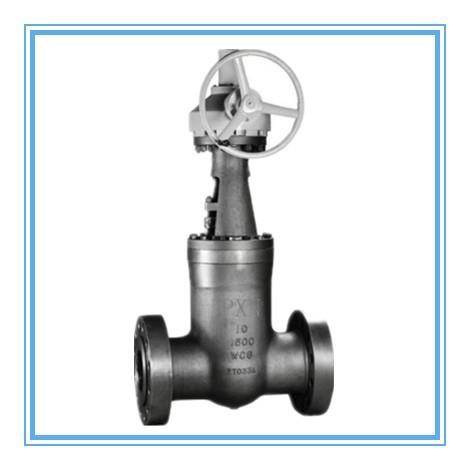

Double Disc Wedge Type Gate Valve

Double Disc Wedge Type Gate Valve For high stream

Double Disc Gate Valve are special design of gate valve that improves the performance of wedge gate valve.The body-bonnet connection is made by a pressure seal gasket.

Specifications:

Design and manufacture: API600 or ASME B16.34

FTF: ASME B16.10

BW: ASME B16.25

Inspection and test standard:MSS SP-61 or API 598

Full Port, Design for high pressure service

Size: 4" to 24" DN100 to 600

Pressure: 600LB, 900LB ,1500LB, 2500LB, 3000LB, 4500LB (PN200-PN500)

Body: Available for both cast and forged steel

Bonnet: Same material as body, and wall thickness sometimes are exceeds than the requirement of API600

Disc: There are two forged disc and seating area are hardfaced with 2mm minimum thickess of Stellite

Renewable Seat ring: forged stainless steel, hardface with at least 2mm Stellite, lapped for a perfect tight seat.

Special Features:

Nace Requirement, Special bore, Extended Stem, Extended bonnet.

Accessories:

Vent&Drain: plugged, Flanged, with Valve, Bypass
