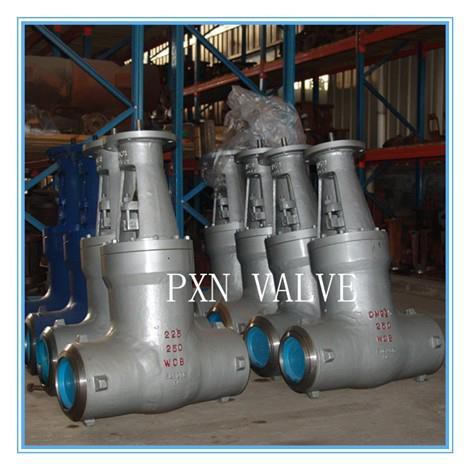

Pressure Seal Bonnet Gate Valve

Pressure Seal Gate Valve

Pressure seal construction is for high temperature high pressure service, tycially pressure is 900LB, 1500LB, 2500LB, 3000lb, 4500LB. Compared to other constructions, Pressure seal is body-bonnet joint seals, he sealing is achieved by the internal pressure that pushes the bonnet against the gasket providing the sealing.

Basic Information:

Size: 2 inch to 24 inch

Pressure: 900LB to 4500LB

Material: Available in Casting (WCB, WCC, WC6, WC9, C12A)

          Available in Forging(A105, F11, F22, F51, F53, F91)

Connection: RF, RTJ, BW

Operation: Gear, Motor, pneumatic actuator

Standard Service: use in oil&ga production and processing, power generation.such as:high pressure service;high pressure service; high pressure fluid; offshore platforms; onshore terminals.

Special Service: Dirty/abrasive Service, High-pressure heater feedwater

Features:

Design and manufacture standard: ASME B16.34 or API specifications

End to end dimensions standard: ASME B16.10

Inspecion and test standard: MSS SP-61 or API598

Butt welded end standard: ASME B16.25

Pressure Seal Bonnet Sealing: As sealing capability doesn't rely on body/bonnet bolting, this configuration is fit for high temperature service.

Stem Sealing: Graphite packing for high temperature service.

Seat Sealing: Integral body Seat or Sealing welded separate seat rings. Renewable seat ring are also available upon request.
