DIN Standard F4/F5 Series Wedge Gate Valve
Design: DIN 3352
Face to Face: DIN 3202
End Flange: DIN 2533
Test&Inspection: DIN EN12266:2003
Send Inquiry
Product Introduction

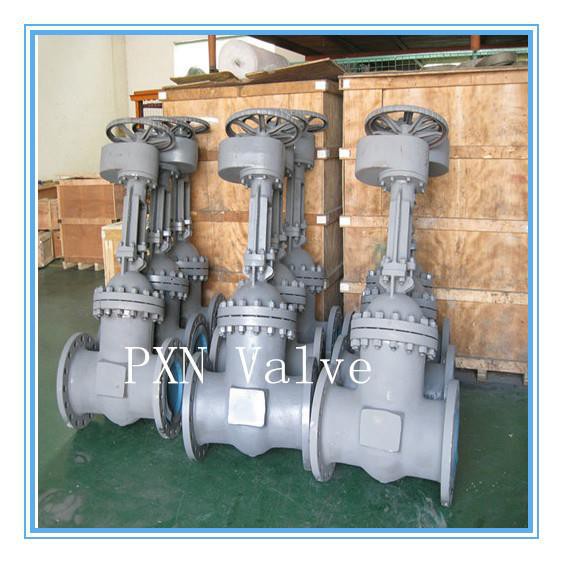

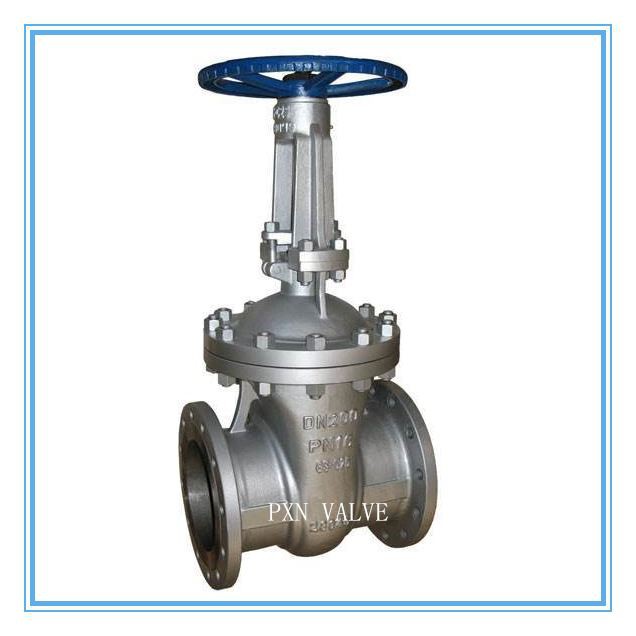

DIN Standard F4/F5 Series Wedge Gate Valve
Design: DIN 3352
Face to Face: DIN 3202
End Flange: DIN 2533
Test&Inspection: DIN EN12266:2003
Size: DN50--DN600
Pressure: PN16, PN25, PN 40, PN64, PN100
Material: GS-C25
Flange end
Solid or Flexible Wedge
Operation: Handwheel, Gear, Pneumatic and Electric actuator
PN16 Main Size:
| DN(mm) | L | D | D1 | D2 | b | f | Z-d | H | Kg |
| 50 | 250 | 160 | 125 | 100 | 16 | 3 | 4-18 | 358 | 29 |
| 65 | 270 | 180 | 145 | 120 | 18 | 3 | 4-18 | 375 | 33 |
| 80 | 280 | 195 | 160 | 135 | 20 | 3 | 8-18 | 433 | 45 |
| 100 | 300 | 215 | 180 | 155 | 20 | 3 | 8-18 | 502 | 63 |
| 125 | 325 | 245 | 210 | 185 | 22 | 3 | 8-18 | 612 | 108 |
| 150 | 350 | 280 | 240 | 210 | 24 | 3 | 8-23 | 676 | 134 |
| 200 | 400 | 335 | 295 | 265 | 26 | 3 | 12-23 | 820 | 192 |
| 250 | 450 | 405 | 355 | 320 | 40 | 3 | 12-25 | 969 | 273 |
| 300 | 500 | 460 | 410 | 375 | 40 | 3 | 12-25 | 1142 | 379 |
