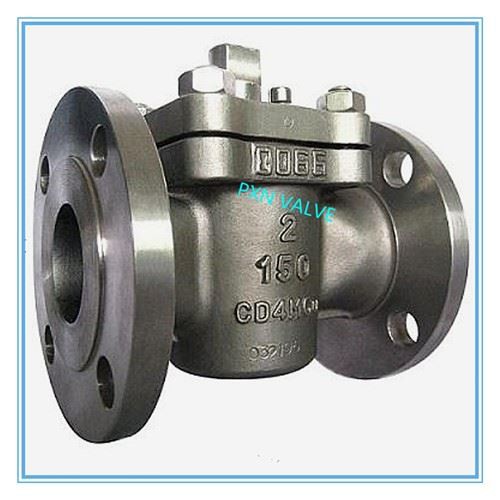

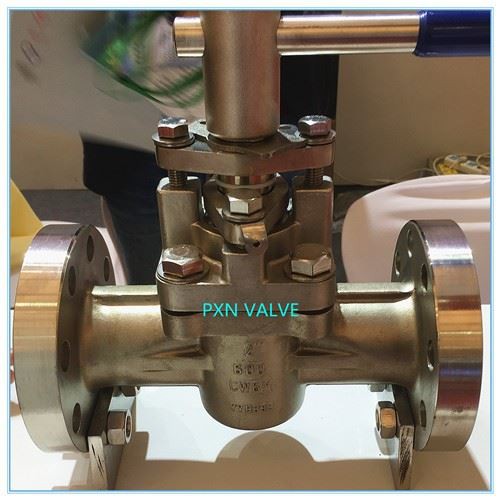

WCB Body PTFE Lined ANSI A216 Sleeve Plug Valve
WCB Body PTFE Lined ANSI A216 Sleeve plug valve
1. Our advantages of sleeved plug valve
Material: The insert PTFE sleeve completely surrounds the plug. The sleeve provides a full-circunferential sealing surface from port to port. Open, closed or roting the seal is assured.
PTFE Sleeve plug valve can be used in large-scale chemical industry.
Technical Specification:
1.Design and manufacture standard | API599, API6D, DIN3356 |
| 2.Face to face dimension standard | ASME B16.10,DIN3202-F1 |
| 3.Flange connetion standard | ASME B16.5, DIN2543-2545, GB/TT9113, HG20592, EN1092-1. |
| 4.Test and inspection standard | API 598, API6D, DIN3230 |
2. Soft seat plug valve and metal seat plug valve.Non-lubricated sleeve plug valve,oil-lubricated plug
valve,pressure balance plug valve are regular type.
Size Range: 2"-40"
Pressure Rating: 150lb-2500lb,PN6-PN160
Body material: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A,
5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy, B62,copper,Bronze etc.
Sleeve:PTFE
Temperature Range: -29°C~300°C
