Home » Product > Plug Valve
Product Categories

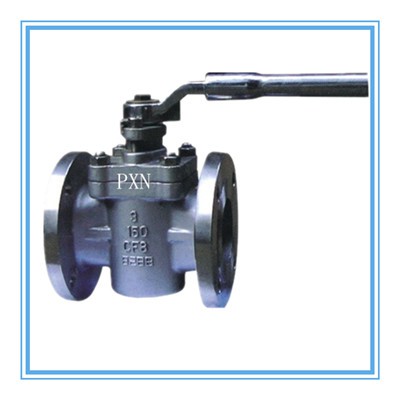

Stainless Steel Plug Valve

1.Size: 2inch
2.Pressure: 300LB
3.Material: CF3M
4.Connection: Flange
5.Operation: Lever

Send InquiryChat Now

Stainless steel plug valve, Stainless steel flanged plug valve, API Series stainless steel plug valve.

Sleeve type soft sealing plug (ANSI)  is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of CLASS 150-900LBS


Specifications:

1.Size: 2inch

2.Pressure: 300LB

3.Material: CF3M

4.Connection: Flange

5.Operation: Lever


Features:

1.The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance

2.Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.

3.There Is no cavity in the valve for accumulation of medium.

4.Metal edge provides the function of self-cleaning when the plug is rotated, applicable to the operation condition that is glutinous and apt to smudge.

5.Its characteristic double-direction flow makes installation and sue more convenient.

6.The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.


Product Name:

jacket plug valve

Size:

1/2"inch to 24inch(DN15 to DN600)

Pressure rating

150LB to 1500LB (PN10 to PN40)

Material:

WCB, WC9, C5,CF8, CF8M, CF3, CF3M

Port:

Full Port

End connection:

RF

Operation type

Handwheel, worm, level

Design Standards:

API6D

Face to Face:

ASME B16.10

Test standard:

API6D

Flange standard:

ASME B16.5
