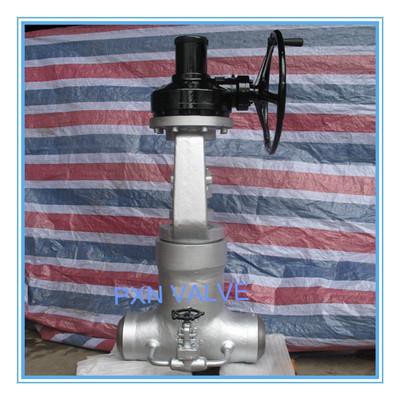

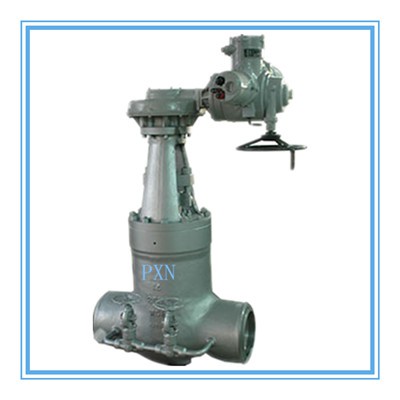

Gate Valve with Bypass Valve
Pressure: 2500LB (PN420)
Material: WC6
Trim: Stellite
Connection: BW End
Operation: Rotork Electric Actuator
Cast steel Gate Valve with pass-by, BW By-pass gate valve, By-pass Gate Valve, Rotork Electric actuator gate valve.
Cast steel Gate valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Valve with by-pass give less pressure difference between inlet and outlet. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.
Specification:
Size: 14inch (DN350)
Pressure: 2500LB (PN420)
Material: WC6
Trim: Stellite
Connection: BW End
Operation: Rotork Electric Actuator
Feature:
1.Available with optional wedge structure
2.Available with optional position of by-pass
3.By-pass decreases pressure difference between inlet and outlet
4.renewable structure and long service time
Technical
Product Name: | WCB gate valve with by-pass valve | API 600 gate valve with pass by valve | Pressure seal gate valve with bypass | By-pass valve Gate Valve | gate valve with by pass valve |
Size: | 2inch to 48inch(DN50 to DN1200) | ||||
Pressure rating | 150LB to 2500LB (PN10 to PN160) | ||||
Material: | A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15、 A351 CF8、CF8M、CF3、CF3M, etc | ||||
End connection: | Flange End | BW end | SW | ||
Operation type | Hand wheel, Gear, Electric actuator, pneumatic actuator | ||||
Design Standards: | API 600 | ASME B16.34 | EN558-1 | ||
Face to Face: | ASME B16.10 | EN558-1 | |||
Test standard: | API6D, API598, EN12266-1 | ||||
