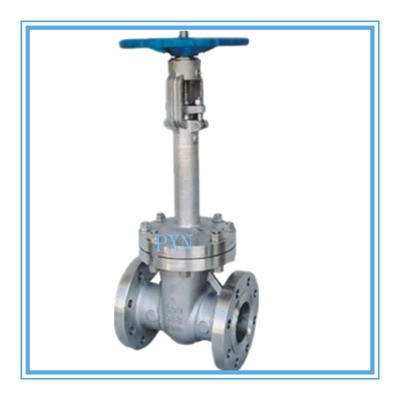

Cryogenic Gate Valve
Pressure: 150LB
Material: CF8
Connection: Flange end
Operation: Handwheel
Cryogenic Gate Valve, Cast steel Cryogenic gate valve, Cryogenic flanged gate valve, LNG gate Valve

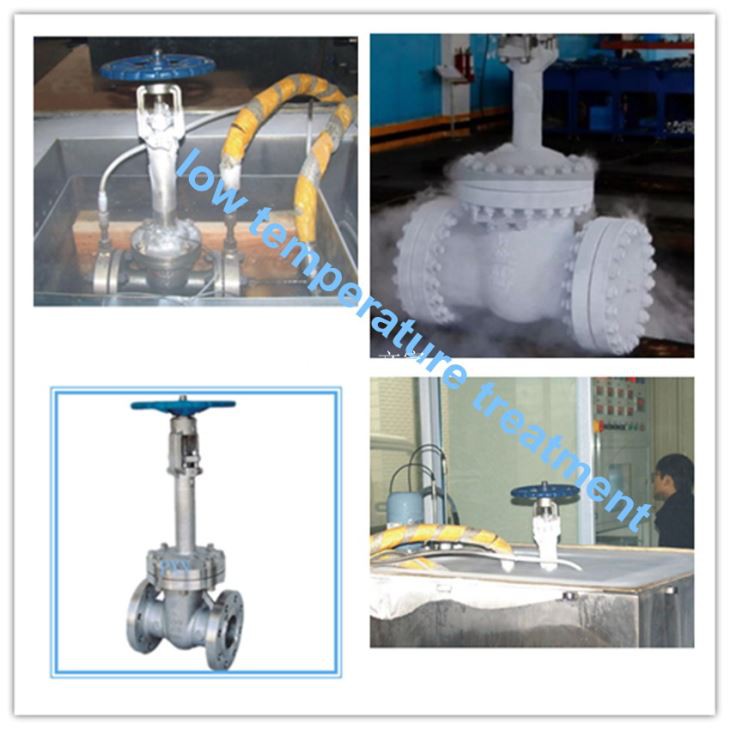

Cryogenic Gate valves (Generally flange connection and Butt-welding optional) are suitable for use on various kinds of pipeline from Class150 to Class1500, PN16 to PN160 to cut off or connect the flowing of medium. By using different material, cryogenic gate valve is suitable for cryogenic medium such as methane, LNG, ethylene, carbon dioxide, liquid oxygen, liquid nitrogen, liquid hydrogen and so on. And the working temperature of these medium is usually below -110 ºC.
Specification:
Size: 8inch (DN200)
Pressure: 150LB
Material: CF8
Connection: Flange end
Operation: Handwheel
Features:
1.Good sealing performance
2.reliable quality
3.Extend bonnet
4.Welded or threat seat
Technical Data:
Product Name: | LNG Gate Valve | LNG Vacuum gate valve | Cryogenic gate valve | Cryogenic flanged gate valve | API600 Cryogenic gate valve |
Size: | 2inch to 24inch(DN50 to DN600) | ||||
Pressure rating | 150LB to 900LB (PN100 to PN760) | ||||
Material: | LCB, LCC; A351 CF8、CF8M、CF3、CF3M, etc | ||||
End connection: | RF | RTJ | |||
Operation type | Hand wheel, Gear, Electric actuator, pneumatic actuator | ||||
Design Standards: | API600 | ASME B16.34 | |||
Face to Face: | API600 | ||||
Test standard: | ISO5208, API598 | ||||
