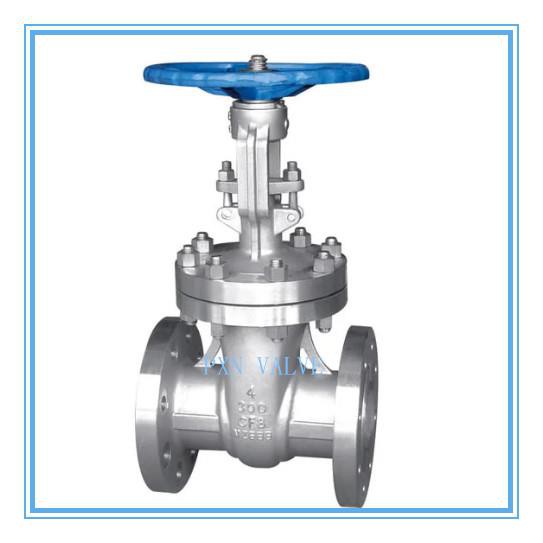

Stainless Steel Flange Gate Valve
Wedge gate valve ASME Class 150/300/600
Low Emission Gate Valve Design
Stainless Steel Flange Gate Valve
PXN Valve offer a wide range of gate valve, API600 Wedge gate valve, API603 Gate Valve, API 602 Forged Steel gate valve and Pressure seal gate valve.
Wedge gate valve ASME Class 150/300/600
Low Emission Gate Valve Design
Specifications:
Size: 2inch to 24inch
Class: 150LB, 300LB, 600LB, 900LB
Material: Cast Steel, Stainless Steel, Bronze, Alloy Steel
Working temperature:-196 to 200
Pressure range: 150LB to 2500LB
Special design available
Various materials offered to meet different requirements.
Features:
BODY AND BONNET:
The gate valve body has a straight through port without recesses except at the seat area. This ensures minimum turbulence, erosion and resistance to flow. Bonnet castings are of one-piec design, where the yoke is integral with the bonnet for gate valves of sizes up to 12 inch.
STEM
Non-piece construction Stem, ACME threaded and precision-machined with polished sur-faces to reduce friction, minimize leakage and exntend stem life.
SEAT RING:
A seal-welded seat ring that offers a leakproof design as it sliminates the leakage path between the seat ring and body. Threaded seat rings are optional.
FLEXIBLE WEDGE:
Oneipiece cast flexible wedge that minimizes stress concentration.Wedge flexibility ensures tight seating over a wide range of differential pressures and temperatures.It also adusts to slight misalignments caused by pipeline deflections and thermal deformation.
Body material and working temperature
| Material | ASTM Specification | Working Temperature |
| Carbon Steel | ASTM A216 Gr. WCB | -29 TO 427(-200F to 8000F) |
| CrMo Steel | ASTM A217 Gr. WC6 | -29 TO 593(-200F to 11000F) |
| CrMo Steel | ASTM A217 Gr.WC9 | -29 TO 649(-200F to 11000F) |
| CrMo Steel | ASTM A217 Gr.C12A | -29 TO649(-200F to 12000F) |
| Low-temperature Steel | ASTM A352 Gr.LCB/LCC | -46 to 343(-500F to 6500F) |
| Stainless Steel | ASTM A351 Gr. CF8 | -196 to 343(-3200F to 6500F) |
| Stianless Steel | ASTM A351 Gr.CF8M | -196 to 649(-3200F to 12000F) |
