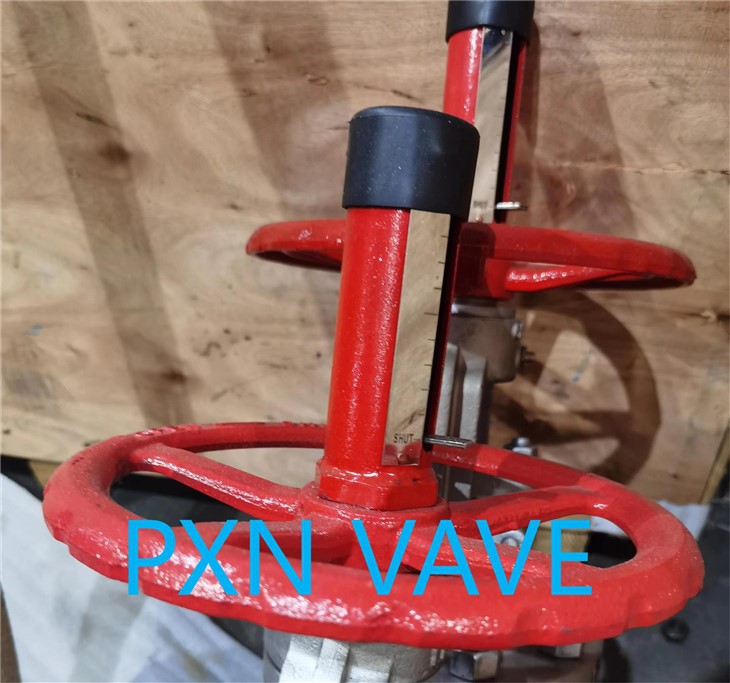

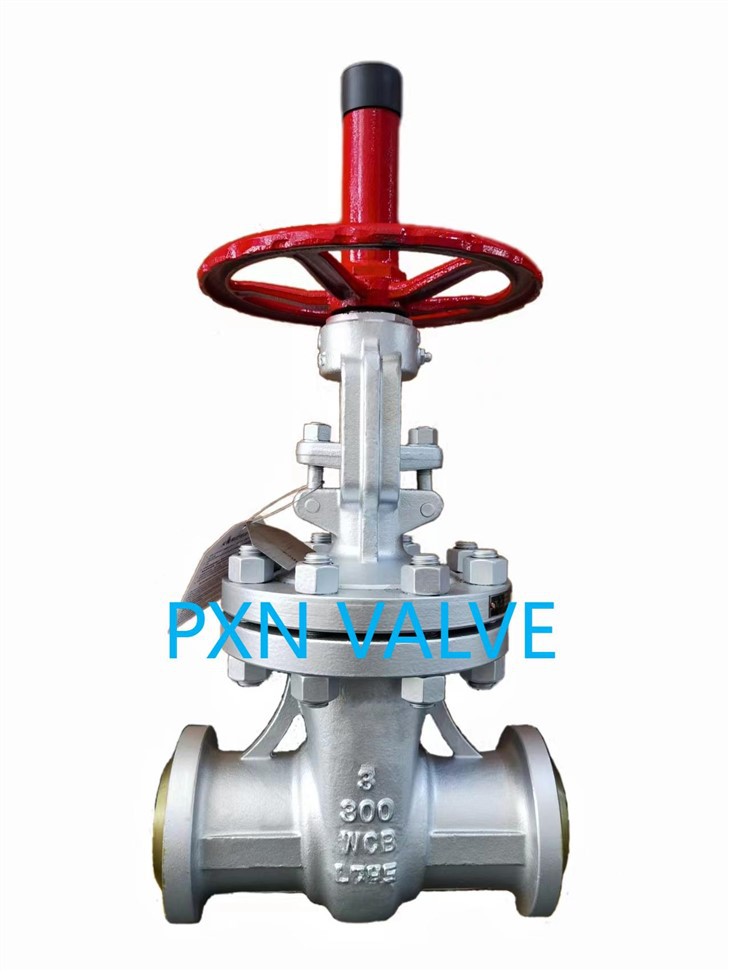

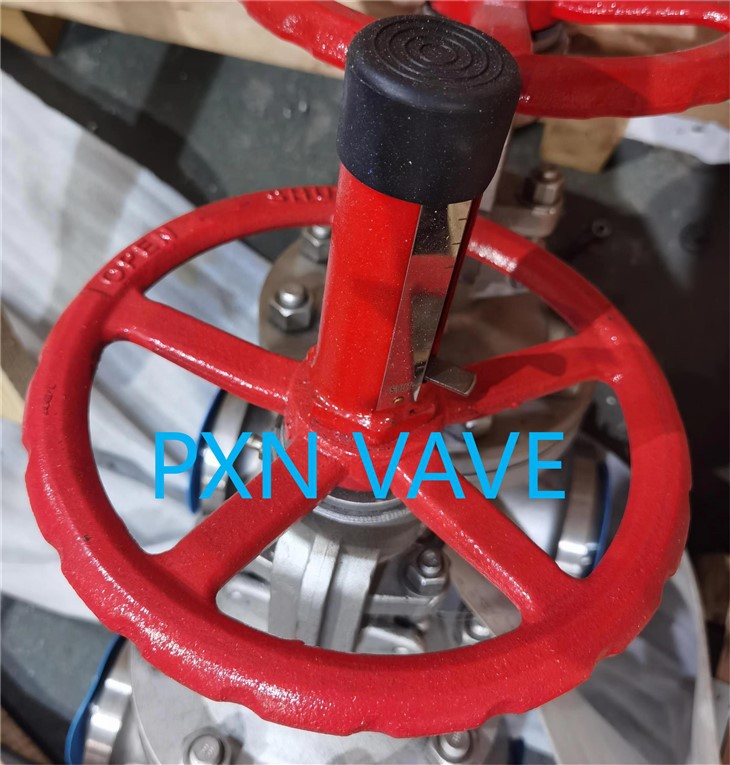

Gate Valve With Position Indicator
Traditional gate valves do not have an opening indication device, so operators cannot easily determine the opening or closing degree of the valve during use. They usually need to contact the valve for manual judgment, which is not convenient, adding wasted maintenance time and cost to the enterprise.
Therefore, there is an urgent need for a gate valve with an indicating device that can display the opening or closing degree of the valve in real time.
The purpose of this technology is to overcome the shortcomings of the existing technology by providing a gate valve with an indicator that visually displays the open or closed degree of the valve.
Specification:
|
Product Name |
Position Indicator Gate Valve |
Valve type |
Gate Valve |
|
Size |
2"~36" (DN50～DN900) |
Structure |
Wedge Gate Valve |
|
Pressure |
ASME CL, 150, 300, 600, 900, 1500, 2500 | Connection | BW, RF |
|
Suitable Temperature |
-196℃~600℃ |
Operation |
Handwheel, Gear, Actuators Etc. |
|
Material of Body |
Cast Steel, Stainless Steel, Special Alloy, CI, DI, etc |
Standard |
ISO, API, ANSI, BS, GB, JB |
|
Seal |
HARD |
Medium |
Water, Oil & Steam etc. |
Advantage：
1. Mechanical principle, do not need to work power supply can work;
2. Cost saving, power failure can continue to display;
3. Know the trend of the switch, more intuitive;
4. Light volume, easy to install;
5. Long service life, free from replacement;
6. Also suitable for large size or limited installation space gate valves.
Standards:
| Design & Manufacture |
Face to Face |
End Flanges | Butt Welding Ends |
Inspection & Test |
Pressure-Temperature |
|
API 600 ANSI B16.34 |
ASME B16.10 |
ASME B16.5 ASME B16.47 |
ASME B16.25 |
API 598 |
ANSI B16.34 |
Design Description:
- Outside Screw and Yoke
- Bolted Bonnet and Pressure Seal
- Flexible and solid wedge, fully guided
- Welding seat rings or Renewable seat rings
- Rising stem and non-rising stem
- Available with gear operator
- Flange Ends & Buttwelding Ends
- Low torque design,smooth surface stem.
| Brand | PXN VALVE |
| Structure | Gate |
| Valve Material | PXN provide cast steel, stainless steel, special alloy, CI, DI, etc |
| Valve Type | PXN Produce Gate Valve |
| Valve Test | 100% quantity tested before delivery |
| Valve Guarantee | 18 months after shipments and 12 months after installed |
| Valve Structure | Wedge Gate Valve |
| Valve Delivery | 15 - 40 days |
| Valve Sample | Sample Available by PXN VALVE |
| Valve Color | Customer request |
| Valve Packing | Plywood Case for Gate Valve |
| MOQ | 1 Set |
| Valve Certificate | API6D/CE/ISO9001/ISO14001 |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail: | Shipped in 15-40 days after payment |
| Port | Shanghai / Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
| Accessories | Accessories such as gear operators, actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers' requirements |
Service Condition：
Products are widely used in power plants, water plants, hydropower stations, thermal power plants, municipal engineering and other fields.
