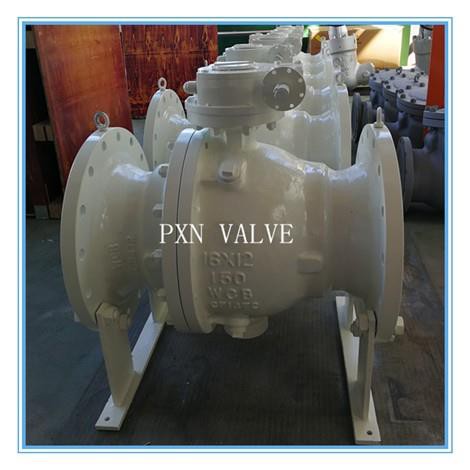

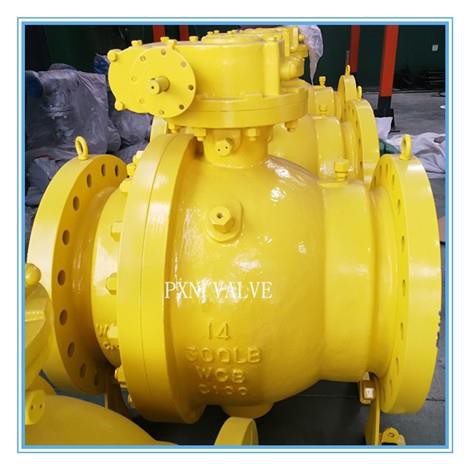

Full Port Cast Steel Trunnion Mounted Ball Valve
Cast Steel Trunnion Mounted Ball Valve
Full Port
Body: Cast Steel
Soft Seat
Worm Operated
Send Inquiry
Product Introduction
Full Port Cast Steel Trunnion Mounted Ball Valve
Ball Valve, Trunnion Type
Full Port/Reduced Bore
Split Body/ 2 Pieces Ball Valve
Size: 4 inch to 24 inch
Class: 150, 300, 600
Body: WCB
Ball: A105+ENP
Stem: F6a
Seat: PTFE/RPTFE/Devlon
RF end
Worm Operated
| Size | D | RF | BW | RTJ | H1 | H2 | W | D1 |
| 4 | 100 | 229 | 305 | 241 | 185 | 135 | 1050 | 71 |
| 6 | 150 | 394 | 457 | 406 | 272 | 177 | 300 | 100 |
| 8 | 201 | 457 | 521 | 470 | 330 | 235 | 350 | 150 |
| 10 | 252 | 533 | 559 | 546 | 380 | 287 | 400 | 201 |
| 12 | 303 | 610 | 635 | 622 | 385 | 300 | 500 | 252 |
| 14 | 334 | 686 | 762 | 699 | 410 | 324 | 500 | 303 |
| 16 | 385 | 762 | 838 | 775 | 455 | 365 | 500 | 334 |
