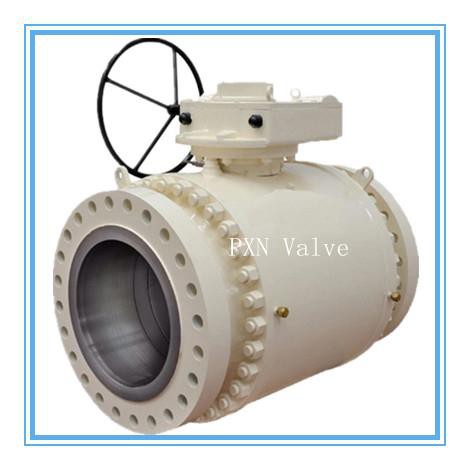

API6D Full Bore Ball Valve 1500LB/2500LB

Superheat Spray Block Valve for Power Generation Unit, Metal Seat Ball Valve for Power plant, Forged Steel Ball Valve

Fuild: Water

Size: 6inch -4inch

Pressure: 1500LB, 2500LB

Body Material: ASTM A105 Forged carbon steel

Ball:F304+NI60

Valve Ball: Serer Service, Metal Seat

Valve Cv: Min 220

Port: Full Port

Max. Temp. 204 degree

Work pressure: 3280psi   Equal to 1500LB

High pressure ball valve 2500LB is used for power generation unit, Butt weld SCH 160 according to ASME B 16.10  ASTM A105 Forged Carbon Steel Valve are used for power plant.

Ball valve 2500lb with TBD type pneumatic actuator(ON/Off Type) air to open, spring to close, Fail close model actuator, air pressure available at less 80 psig, with ASCO Limit switch and solenoid, Explosion proof.

Ball Valve safe proof according to API 607 Standard. 2500LB Full port ball valve is designed by PXN Valve according to API 6D Standard. Material according to ASTM A105 Forged Carbon Steel Valve, the advantage is full port. Model same as TBD, KITZ

YONGJIA PXN can offer full port ball valve, API 6D ball valve, Metal Seat ball valve, 1500LB ball valve, BW End ball valve for power generation unit.
