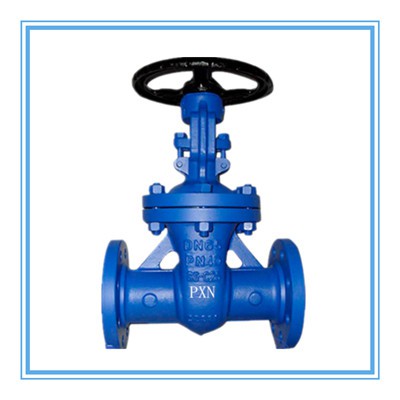

Cast Steel Gate Valve

Cast Steel Gate Valve

(1) Design Standard: DIN EN12288-2003
(2) Face to Face Dimension: DIN EN588-1:1995
(3) End Flange Dimension: DIN EN1092-1:2002
(4) Structures: B.B, OS&Y (Rising Stem)
Send Inquiry
Product Introduction

DIN Standard F4/F5/F7 Cast Steel Gate Valve, DIN F5 cast steel rising stem gate valve, CS-C25 gate valve, NON-Rising stem gate valve, Resilient gate valve, Resilient seated gate valve, DIN 3202 Gate valve.


It is mainly used for switching on or off the medium within pipelines, that is, it is used in a full open or close manner.


The gate valve is widely applicable for oil industry, chemical industry, and power station.


Technical Data

DIN F4 Gate Valve:

(1) Design Standard: DIN EN12288-2003

(2) Face to Face Dimension: DIN EN588-1:1995

(3) End Flange Dimension: DIN EN1092-1:2002

(4) Structures: B.B, OS&Y (Rising Stem)

(5) Material of Body: G.G, GS-C25, S.S 304, S.S 316

(6) Pressure Rating: PN16

(7) Test Standard: DIN EN12266:2003


Specifications:

Product Name

DIN Standard F4/F5/F7 Stainless Steel Flanged Gate Valve

1. Material

SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc

2. Size

1/2''~48'' ( DN15~DN1200)

3. Thread standard

ISO9001 & CE, TS

4. Port

Full Port

5. Working Pressure

PN10~PN100

6. Face to face dimension

DIN3202 F4/F5/F7/F15 standard

7. Connection Ends

RF, RTJ, FF, Butt Welded.

8. Type

Rising Stem & Non-Rising Stem

9. Working Temp.

-29~425ºC, or according to customer requirements for different industry.

10. Suitable Medium

Water, Natural Gas, Oil and some corrosive liquid

11. Operated

Handwheel, Gear Operated.

12. Inspection & Testing

According to EN12266

Shipment



Delivery Time

35-60 Days

Package

Standard Exporting Plywood Case

Shipping Port

Ningbo/Shanghai, China

Shipping Terms

Ex work, FOB, CFR, CIF, etc.

Payment Terms

T/T, L/C at sight etc.



30% prepayment, 70% balance paid before shipping or against copy of BL

Country of Origin

Wenzhou city, China


Material Data:

Body

 GS-25

1.4308

Disc

GS-C25

1.4308

1.4408

1.4308

Stem

13Cr

1.4308

1.4408

F304

Wedge Disc Sealing Face

13Cr/13Cr/STL

1.4308/STL

1.4408

1.4308

Seat Ring Swaling Face

13Cr/STL/STL

1.4308/STL

1.4408

1.4308/STL
